| Duplex |
|
Breakout Cable |
 |
|
 |
| Mini Breakout Cable |
|
Loose Tube Cable |
 |
|
 |
| Loose Buffered Cable |
|
Simplex Cable |
| |
|
|
|
| |
 |
| ( Cliclk here for bigger picture ) |
| |
| To simplify configuration, different application packages have been defined: |
• Central tube cables for outdoor and indoor application
• Mini-Breakout cables for indoor application
• Breakout cables for indoor application
• Simplex Patch Cords and Duplex Patch Cords for Patch Panels or Outlets
• Pigtails in various combinations for splicing |
| |
| Performance Characteristics: |

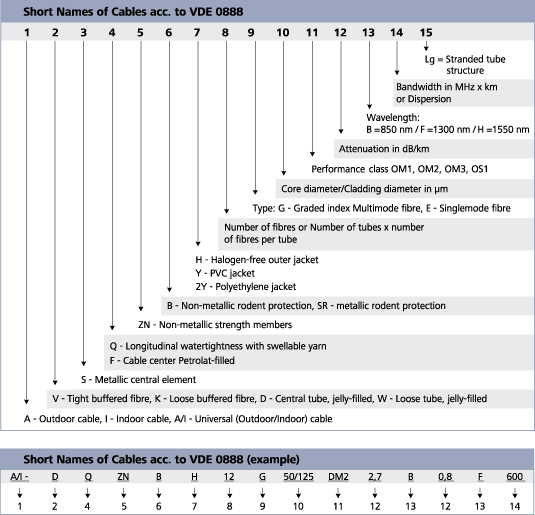

• Ready-to-install optical-fibre cable runs with cables to IEC 60794-1 and design to DIN/VDE 0888; with
halogen-free, flame retardant jacket, for direct burial, UV-resistant
• With between 2 and 24 fibres E9/125, G50/125 and G62,5/125 to IEC 60793
• With connector types ST, SC, SC-Duplex, MT-RJ, LC, E2000, FC/PC, DIN, F-SMA
• Pigtails, Simplex cables, Duplex cables in special lengths and with most of the common connector types
• With assembled splitters and non-crush pulling tube
• Patch panels for 19” or Wall Distribution Panels, and FO Outlets to complement the system
• Test certification with insertion loss values recorded
• 15 years guarantee on the system |
|
| |
